Leosmak product line
We’ve created our product line from a scratch, aiming all products to be simple and solid, so that all components and elements would demonstrate expected reliability, practicality and durability. We also know how important it is to be cost-effective these days, so we’ve pushed the technology beyond the limits of standard energy efficiency. As a result, we’ve created fully scalable, universal, durable and efficient technological platform, which was tested in the most rigorous operational environment.
Industrial Line

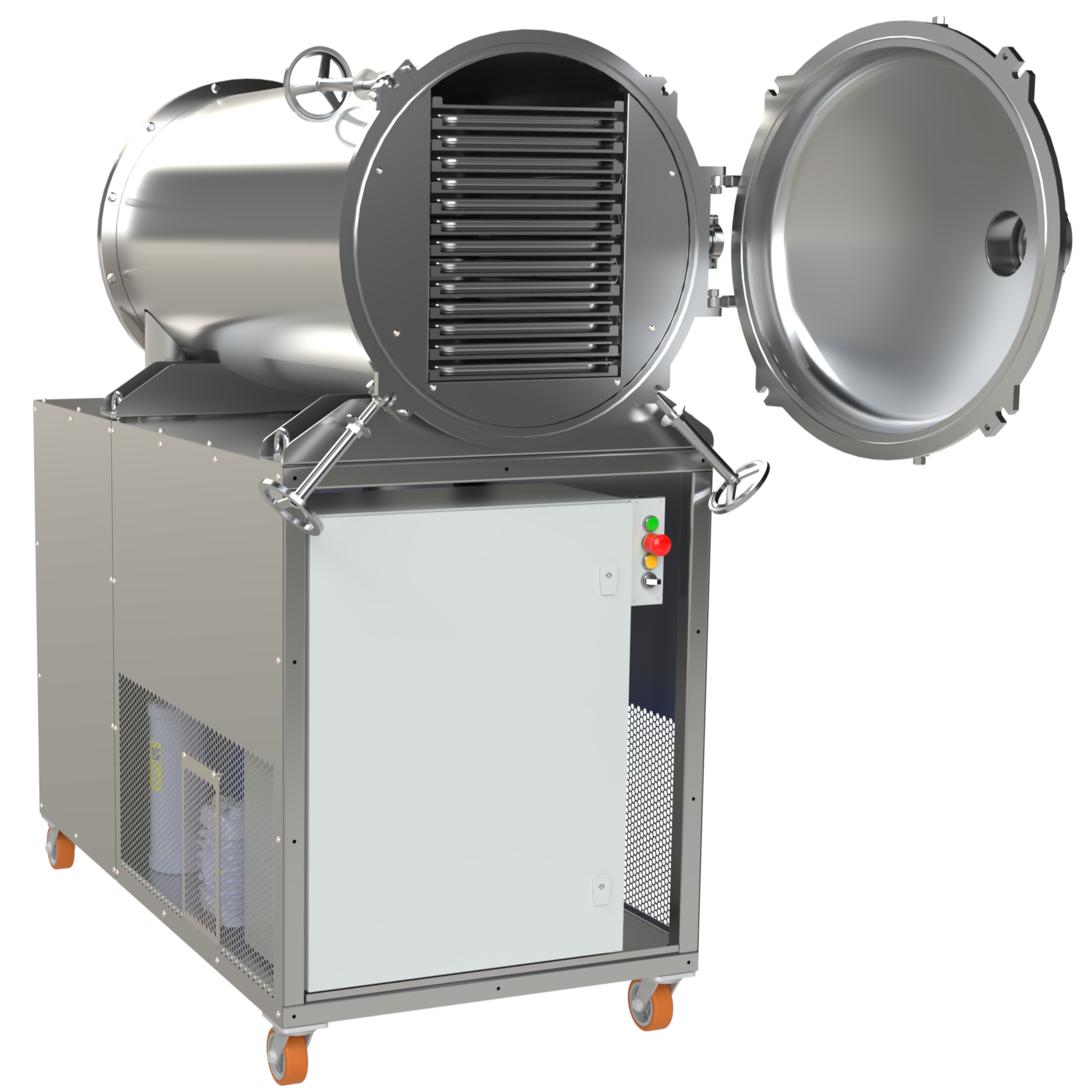

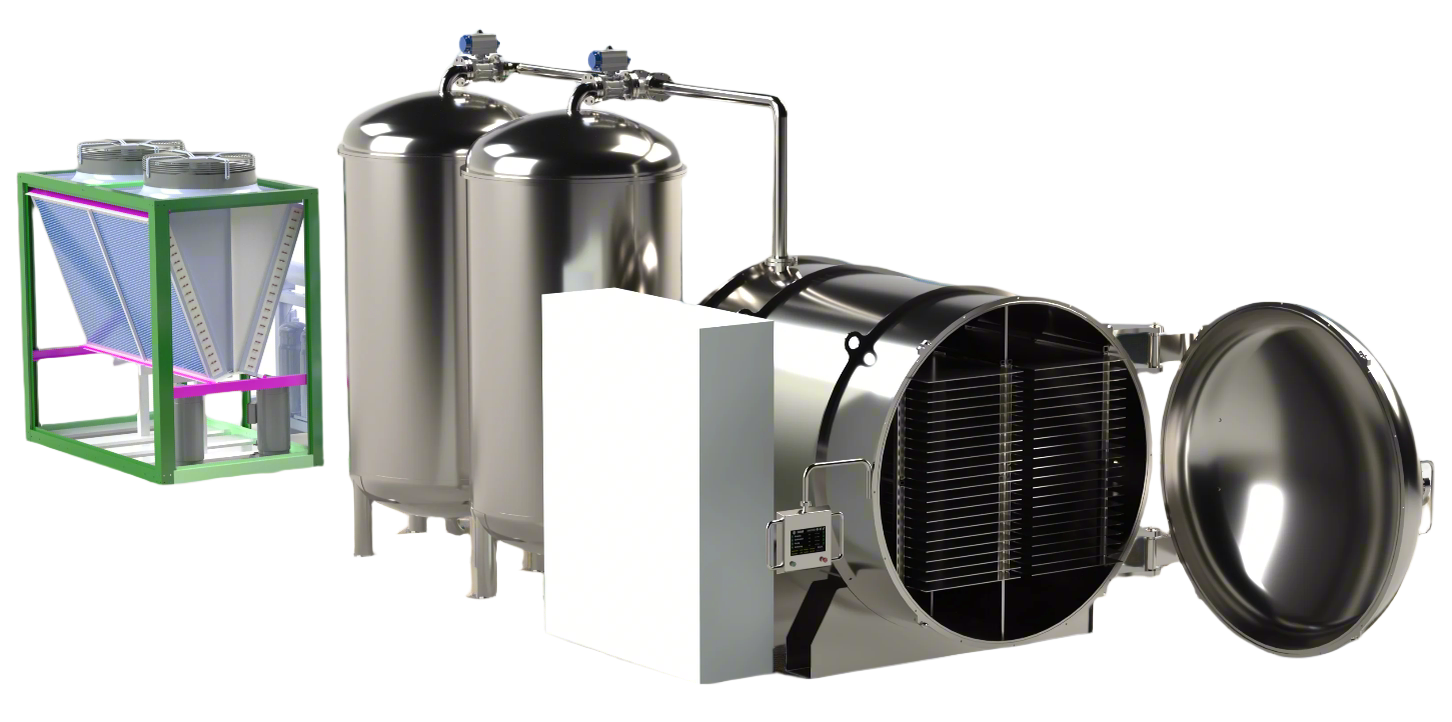

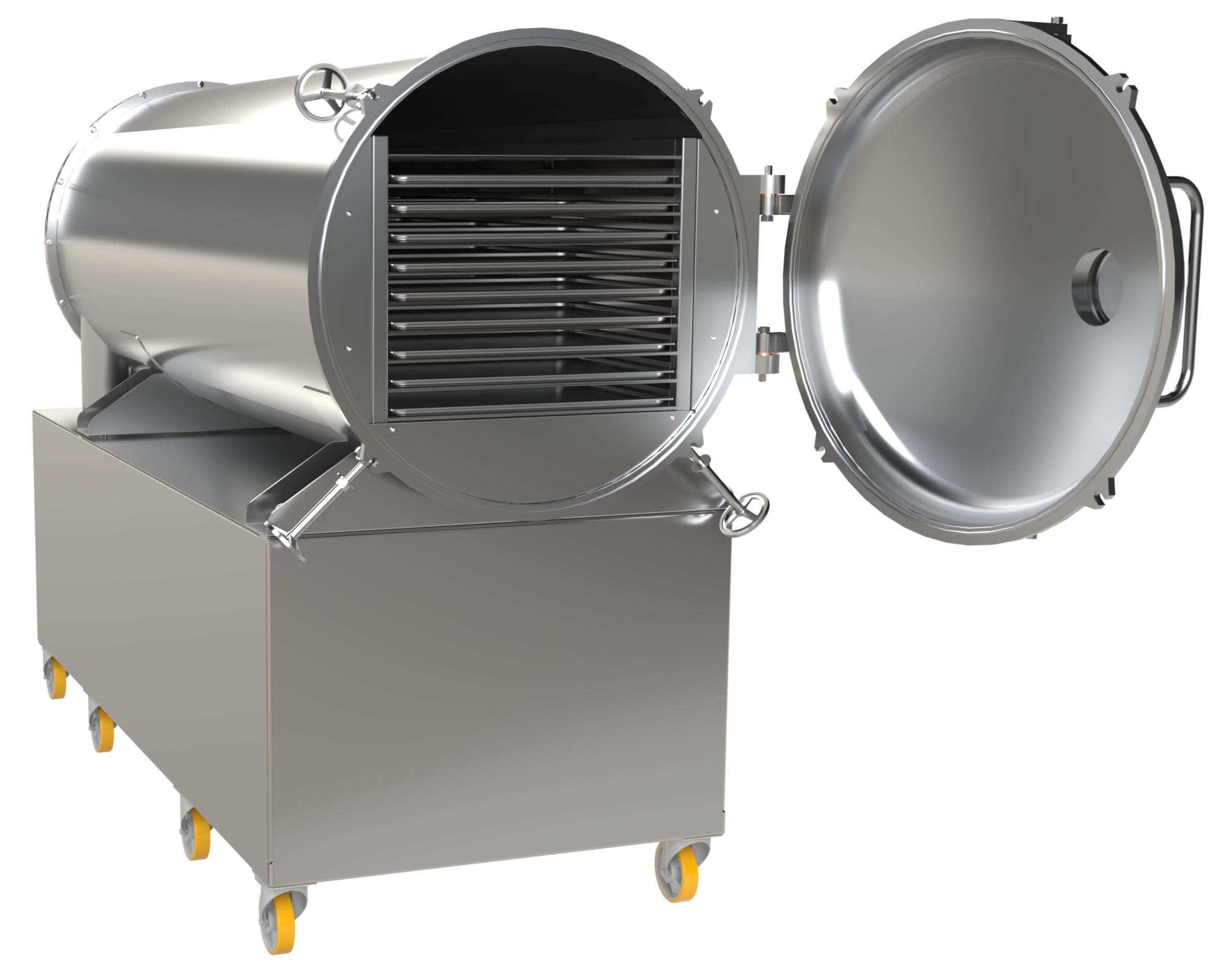

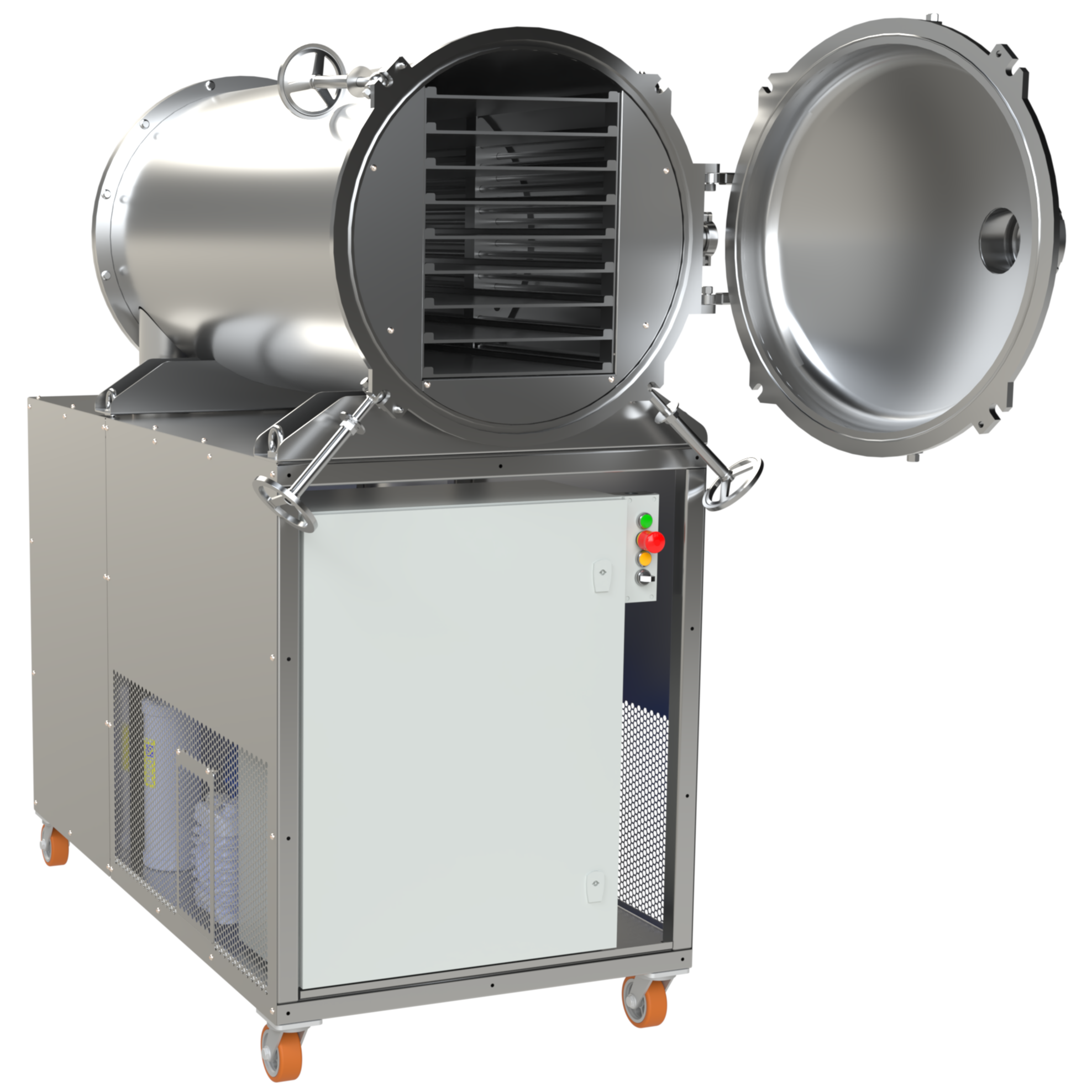

| Parameter/model | LEO-030 | LEO-030L | LEO-130 | LEO-300 | LEO-600 |
|---|---|---|---|---|---|
| Estimated load/batch, kg | 30 | 45 | 130 | 300 | 600 |
| Dimensions (w x l x h), cm | 80 x 185 x 180 | 110 x 350 x 220 | 200 x 200 x 220 - chamber 200 x 100 x 220 - MCU | 200 x 300 x 220 - chamber 200 x 200 x 220 - MCU | |
| Dead weight, kg | 581 | 657 | 2 000 | 6 500 | 7 400 |
| Shelf size, cm | 36,5 x 108,5 | 65,0 x 215,0 | 2 x 65,0 x 106,0 | 2 x 65,0 x 215,0 | |
| Total shelves area, sq. m. | 3,17 | 5,15 | 12,58 | 32,48 | 61,49 |
| Spacing between shelves, mm | 50 | 28 | 50 | ||
| Number of operational shelves | 8 | 13 | 9 | 2 x 15 | 22 |
| Number of trays | 16 | 26 | 36 | 90 | 176 |
| Trays depth, mm | 20 or 40 | 20 | 20 or 40 | ||
| Stainless steel trays standard | GN 1/1 | GN 2/1 | |||
| Parameter/model | LEO-030 | LEO-030L | LEO-130 | LEO-300 | LEO-600 |
|---|---|---|---|---|---|
| Chamber material | AISI 304 (stainless steel) | ||||
| Shelves material | |||||
| Condenser material | |||||
| Observation system | Observation window | ||||
| Transportation | Wheels with breaks, dedicated pallet | 20' or 40' shipping containers | |||
| Loading | Manual | Cart | Cart, rail system | ||
| Cleaning | Washable chamber. Possible cleaning with high-pressure washers | Cleaning in place (CIP) connections inside of a chamber | |||
| Vacuum pump condensate removal | Automatic | ||||
| Parameter/model | LEO-030 | LEO-030L | LEO-130 | LEO-300 | LEO-600 |
|---|---|---|---|---|---|
| Max. ice condenser capacity, kg | 40 | 70 | 220 | 450 | 900 |
| Shelves freezing and heating | Universal radiant, in the shelves | ||||
| Pre-freezing | In the device | ||||
| Defrost method | Automatic fast defrost | ||||
| Refrigeration system | One-stage | ||||
| Steam evaporator temperature, °C | -50 / -55 | ||||
| Shelf temperature, °C | -40 to +80 | ||||
| Refrigerant | R-452B | ||||
| Parameter/model | LEO-030 | LEO-030L | LEO-130 | LEO-300 | LEO-600 |
|---|---|---|---|---|---|
| Connecting power, kW | 4,0 | 12,0 | 38,0 | 95,0 | |
| Voltage, V | 230 V or 400 V | 3x400 V | |||
| Energy consumption, kWh/kg of ice | ~2,0 | ||||
| IP protection cat. acc. to DIN 60529 | 65 | ||||
| Parameter/model | LEO-030 | LEO-030L | LEO-130 | LEO-300 | LEO-600 |
|---|---|---|---|---|---|
| Basic control | LCD touch screen | ||||
| Parameters control | Automatic or manual selection of parameters for each freeze drying stage | ||||
| Sensors and emergency control | Pressure, vacuum control, emergency stop, unauthorized access control | ||||
| Menu languages | English | ||||
| Remote control module | Wi-Fi connection, Mobile App | ||||
| Storage of freeze drying data | Web browser with authorized access | ||||
| Work statistics | |||||
| Historical data, export of data | |||||
| Parameter/model | LEO-030 | LEO-030L | LEO-130 | LEO-300 | LEO-600 |
|---|---|---|---|---|---|
| Software | Remote monitoring, delay start | ||||
| Min. warranty, months | 24, extendable warranty | ||||
| Sweet mode |
| ||||

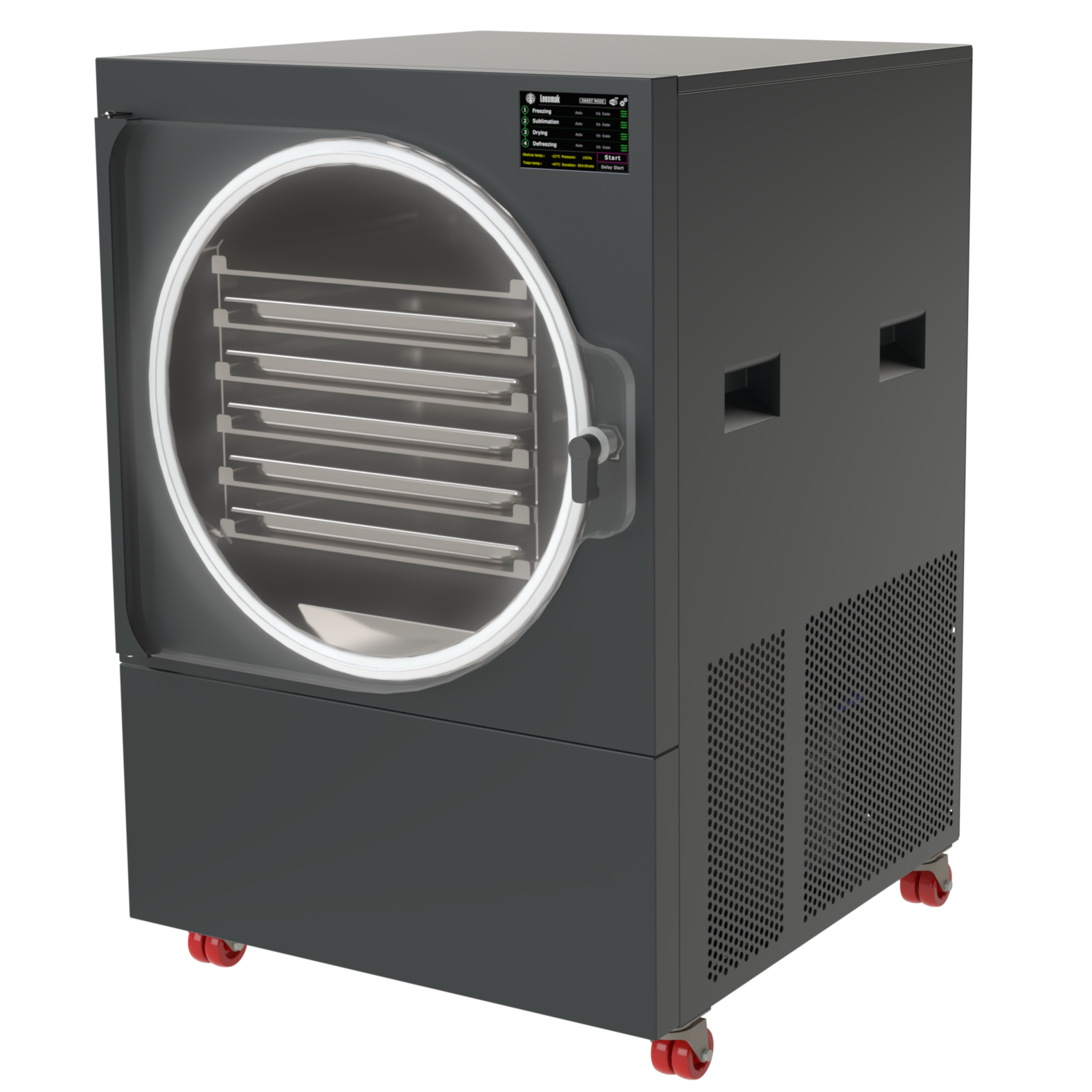

Compact Line

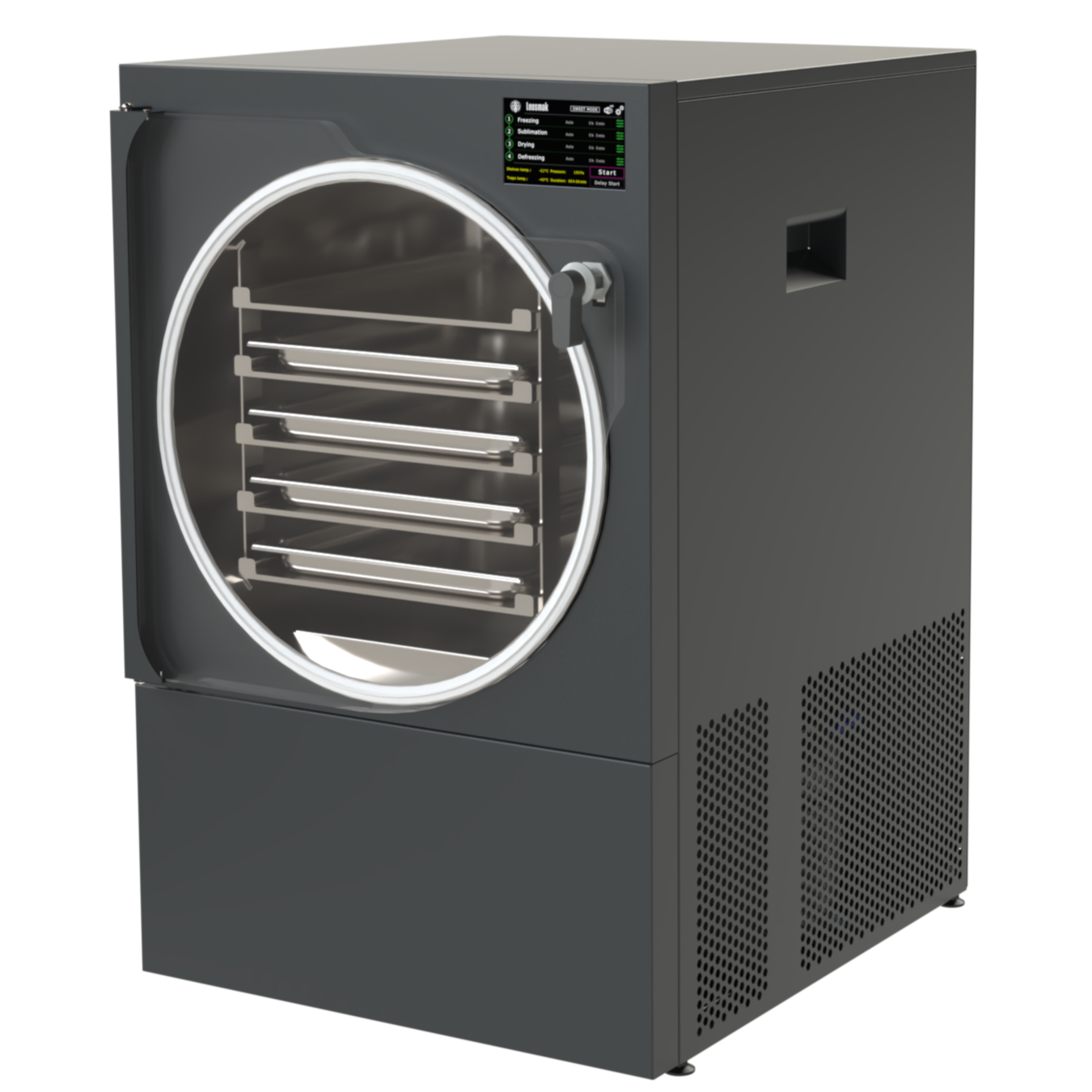

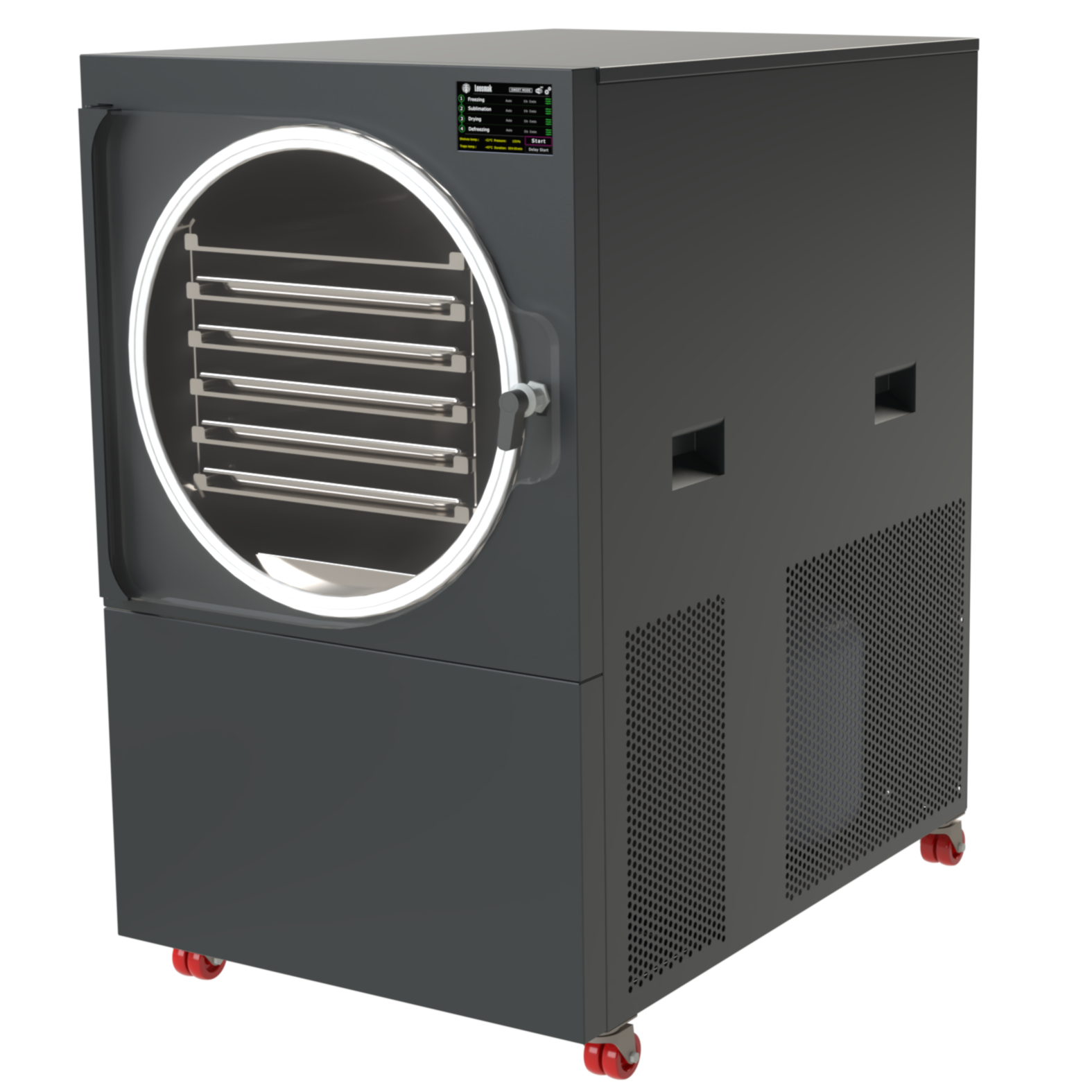

| Parameter/model | LEO-004 | LEO-007 | LEO-010 |
|---|---|---|---|
| Estimated load/batch, kg | 4 | 7 | 10 |
| Dimensions (w x l x h), cm | 50 x 65 x 77 | 60 x 72 x 91 | 60 x 95 x 101 |
| Dead weight, kg | 87 | 117 | 156 |
| Shelf size, cm | 26,0 x 33,0 | 34,5 x 35,5 | 54,0 x 34,5 |
| Total shelves area, sq. m. | 0,34 | 0,61 | 0,93 |
| Spacing between shelves, mm | 50 | ||
| Number of operational shelves | 4 | 5 | 5 |
| Number of trays | 4 | 5 | 5 |
| Trays depth, mm | 20 or 40 | ||
| Stainless steel trays standard | GN 1/2 | GN 2/3 | GN 1/1 |
| Parameter/model | LEO-004 | LEO-007 | LEO-010 |
|---|---|---|---|
| Chamber material | AISI 304 (stainless steel) | ||
| Shelves material | AISI 304 (stainless steel) | ||
| Condenser material | AISI 304 (stainless steel) | ||
| Observation system | Transparent door | ||
| Base & Transportation | Adjustable support legs | Wheels with breaks | |
| Loading | Manual | ||
| Cleaning | Washable chamber. Possible cleaning with high-pressure washers | ||
| Vacuum pump condensate removal | Automatic | ||
| Parameter/model | LEO-004 | LEO-007 | LEO-010 |
|---|---|---|---|
| Max. ice condenser capacity, kg | 6 | 10 | 15 |
| Shelves freezing and heating | Universal radiant, in the shelves | ||
| Pre-freezing | In the device | ||
| Defrost method | Automatic | ||
| Refrigeration system | One-stage | ||
| Steam evaporator temperature, °C | -50 / -55 | ||
| Shelf temperature, °C | -40 to +80 | ||
| Refrigerant | R-452B | ||
| Parameter/model | LEO-004 | LEO-007 | LEO-010 |
|---|---|---|---|
| Connecting power, kW | 1,8 | 2,5 | 3,2 |
| Voltage, V | 1x230 V | ||
| Energy consumption, kWh/kg of ice | ~4,3 | ~4,3 | ~4,3 |
| IP protection cat. acc. to DIN 60529 | 65 | ||
| Parameter/model | LEO-004 | LEO-007 | LEO-010 |
|---|---|---|---|
| Basic control | LCD touch screen | ||
| Parameters control | Automatic or manual selection of parameters for each freeze drying stage | ||
| Sensors and emergency control | Pressure, vacuum control, emergency stop, unauthorized access control | ||
| Menu languages | English | ||
| Remote control monitoring | Wi-Fi connection, Mobile App | ||
| Storage of freeze drying data | Web browser with authorized access | ||
| Work statistics | |||
| Historical data | |||
| Parameter/model | LEO-004 | LEO-007 | LEO-010 |
|---|---|---|---|
| Software | Remote monitoring, delay start | ||
| Min. warranty, months | 24, extendable warranty | ||
| Sweet mode |
| ||

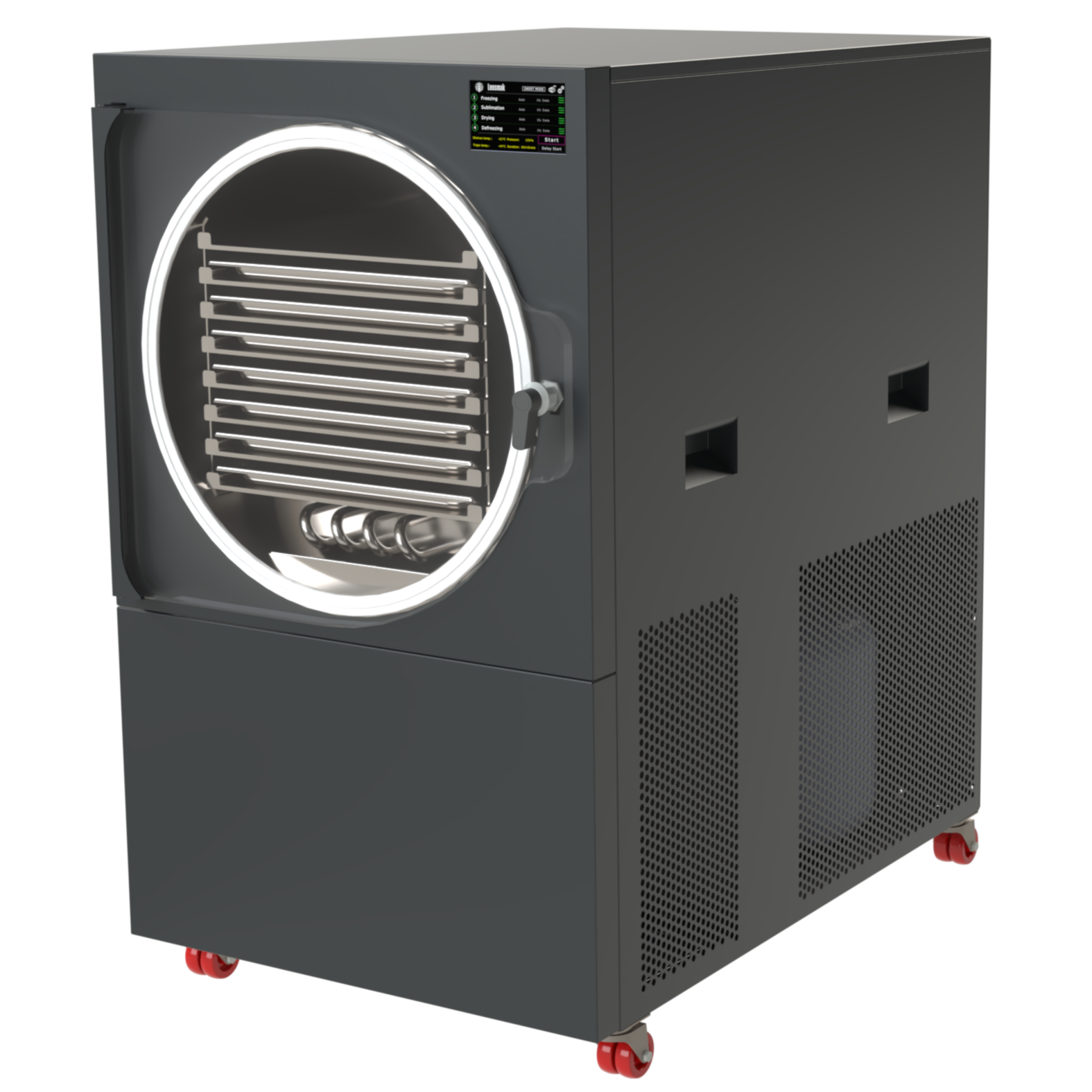

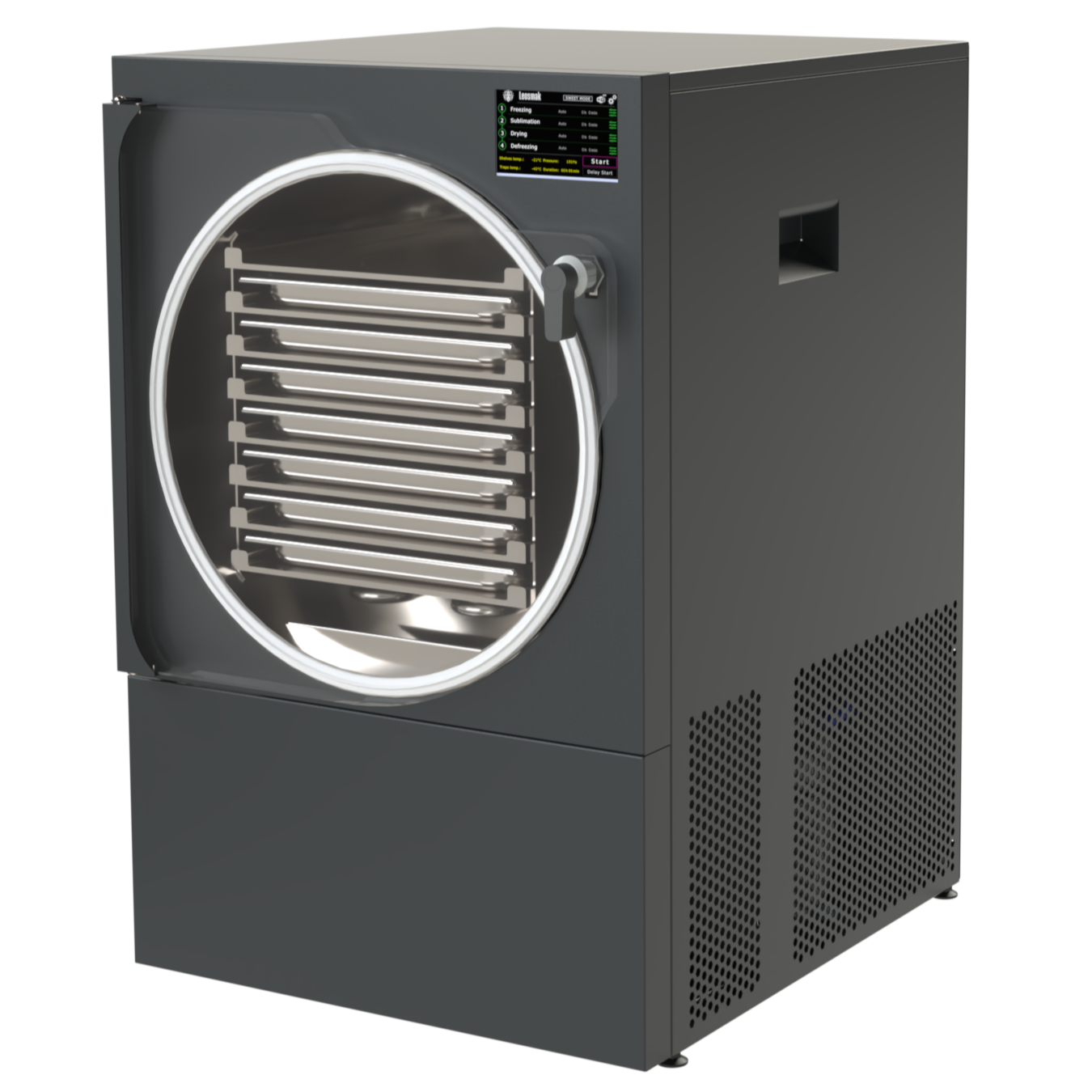

Compact Line (L Series)

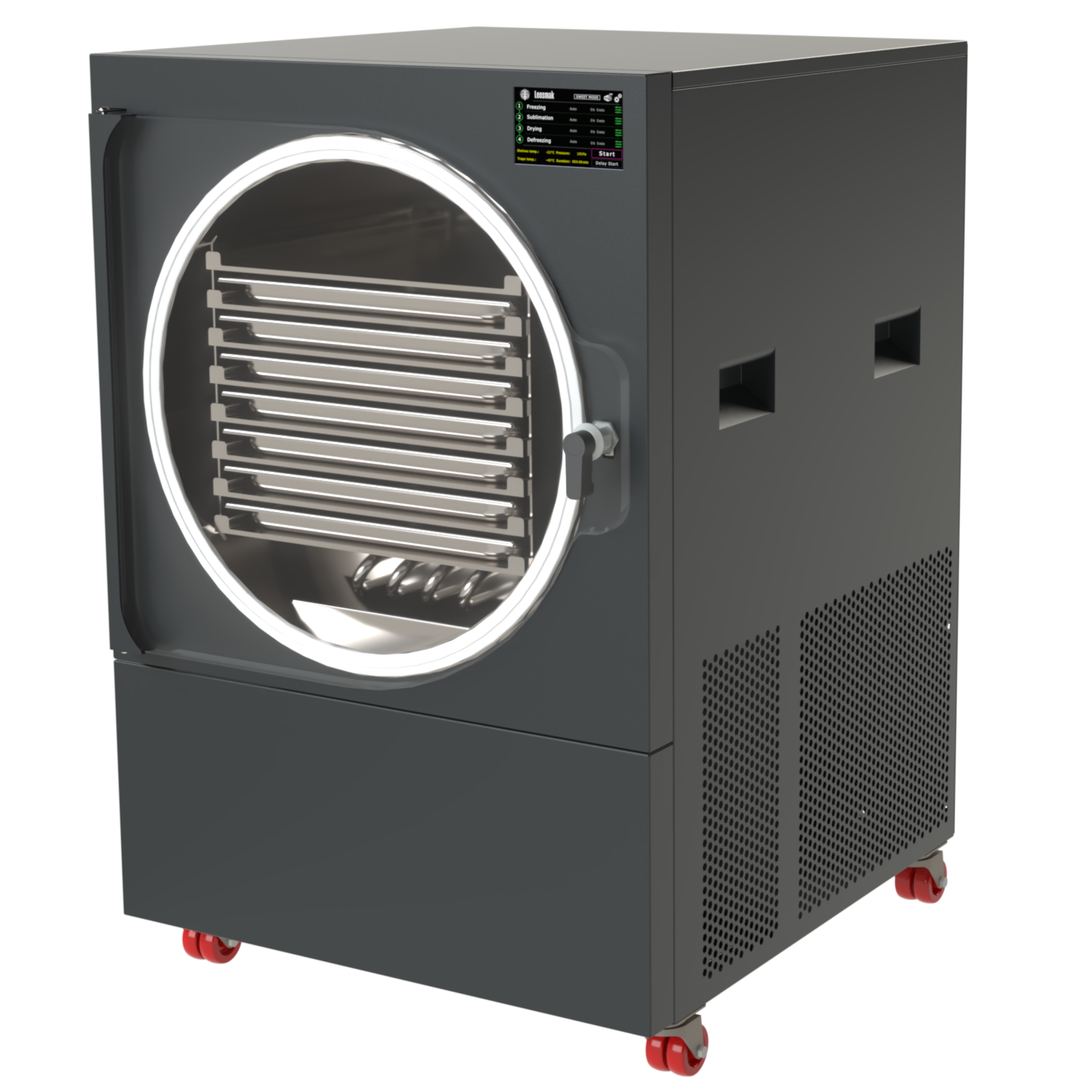

| Parameter/model | LEO-004L | LEO-007L | LEO-010L |
|---|---|---|---|
| Estimated load/batch, kg | 6 | 9 | 15 |
| Dimensions (w x l x h), cm | 50 x 65 x 77 | 60 x 72 x 91 | 60 x 95 x 101 |
| Dead weight, kg | 94 | 125 | 168 |
| Shelf size, cm | 26,0 x 33,0 | 34,5 x 35,5 | 54,0 x 34,5 |
| Total shelves area, sq. m. | 0,60 | 0,86 | 1,30 |
| Spacing between shelves, mm | 28 | ||
| Number of operational shelves | 7 | ||
| Number of trays | 7 | ||
| Trays depth, mm | 20 | ||
| Stainless steel trays standard | GN 1/2 | GN 2/3 | GN 1/1 |
| Parameter/model | LEO-004L | LEO-007L | LEO-010L |
|---|---|---|---|
| Chamber material | AISI 304 (stainless steel) | ||
| Shelves material | |||
| Condenser material | |||
| Observation system | Transparent door | ||
| Base&Transportation | Adjustable support legs | Wheels with breaks | |
| Loading | Manual | ||
| Cleaning | Washable chamber. Possible cleaning with high-pressure washers | ||
| Vacuum pump condensate removal | Automatic | ||
| Parameter/model | LEO-004L | LEO-007L | LEO-010L |
|---|---|---|---|
| Max. ice condenser capacity, kg | 9 | 14 | 18 |
| Shelves freezing and heating | Universal radiant, in the shelves | ||
| Pre-freezing | In the device | ||
| Defrost method | Automatic | ||
| Refrigeration system | One-stage | ||
| Steam evaporator temperature, °C | -50 / -55 | ||
| Shelf temperature, °C | -40 to +80 | ||
| Refrigerant | R-452B | ||
| Parameter/model | LEO-004L | LEO-007L | LEO-010L |
|---|---|---|---|
| Connecting power, kW | 1,8 | 2,5 | 3,2 |
| Voltage, V | 1x230 V | ||
| Energy consumption, kWh/kg of ice | ~4,3 | ~4,3 | ~4,3 |
| IP protection cat. acc. to DIN 60529 | 65 | ||
| Parameter/model | LEO-004L | LEO-007L | LEO-010L |
|---|---|---|---|
| Basic control | LCD touch screen | ||
| Parameters control | Automatic or manual selection of parameters for each freeze drying stage | ||
| Sensors and emergency control | Pressure, vacuum control, emergency stop, unauthorized access control | ||
| Menu languages | English | ||
| Remote control monitoring | Wi-Fi connection, Mobile App | ||
| Storage of freeze drying data | Web browser with authorized access | ||
| Work statistics | |||
| Historical data | |||
| Parameter/model | LEO-004L | LEO-007L | LEO-010L |
|---|---|---|---|
| Software | Remote monitoring, delay start | ||
| Min. warranty, months | 24, extendable warranty | ||
| Sweet mode |
| ||
